Mixing form

Standard configuration without stirrer, can add forced mixing as shown in the figure:

Overview

The V-shaped cylinder is driven by the drive shaft to rotate around the center of the rotation axis, and the material in it also undergoes gravitational diffusion with the two inclined V-shaped cylinders. When the connection (bottom) of the V-shaped cylinder rotates in the lower position, the material converges towards the bottom. When the connection of the V-shaped cylinder rotates to the upper position, the materials collected at the bottom are divided into two inclined cylinders, allowing the materials from each inclined cylinder to enter another inclined cylinder through the connecting interface. As the cylinder rotates and its position changes, the material in the V-shaped cylinder is repeatedly displaced, translated, and diffused, achieving uniform mixing.

Product Features and Applications

The VHJ series gravity diffusion mixer is carefully developed by our company based on advanced foreign technology and combined with our production experience. It is suitable for mixing powder or granular materials in industries such as chemical, food, pharmaceutical, feed, ceramics, metallurgy, etc. The machine has a reasonable and simple structure, sealed operation, and convenient feeding and discharging. The cylinder (manually or vacuum feeding) is made of stainless steel material for easy cleaning, making it one of the basic equipment of the enterprise. The machine has a set of electric motors and a cycloidal pinwheel reducer to complete its rotation. The mixing speed is fast, and there is a significant difference in weight, making it suitable for mixing materials with large mixing ratios. The material contact parts of this machine are all made of stainless steel.

Specification parameters

1. Determine the volume of materials mixed in each batch, ranging from 0.1 to 3 cubic meters, and select equipment of corresponding specifications. The volume size can be customized without standards.

2. The cylinder is made of high-quality stainless steel, and the inner and outer walls are polished. During the mixing process, there is no pollution to the material, with low power consumption and convenient cleaning.

3. Stainless steel butterfly valve is used for material discharge, and there is no dust leakage or flying phenomenon.

4. The large volume mixer can be equipped with a vacuum feeding system to improve work efficiency and improve the working environment.

5. Especially suitable for mixing materials with similar particle sizes and apparent densities. Mandatory mixing blades can be added to the V-type W-type mixer's rotating axis, the V-type W-type mixer's rotating axis, and the V-type W-type cylinder to accelerate the mixing speed. It can also be suitable for mixing materials that are prone to agglomeration.

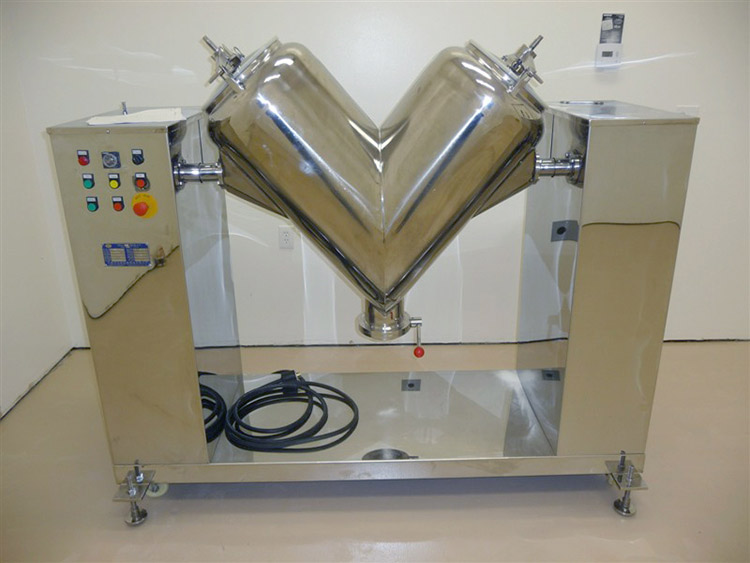

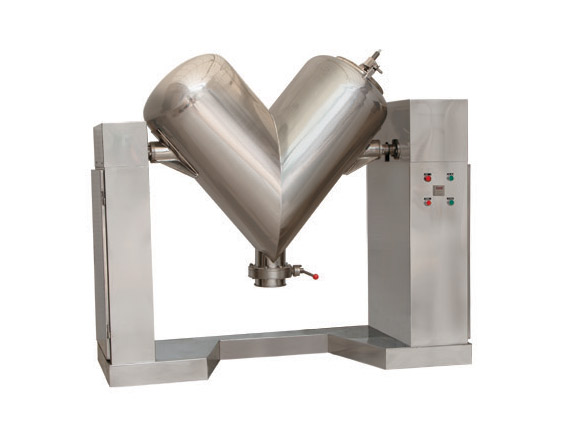

case diagram
