Mixing form

No stirrer

Overview

The machine is composed of an organic base, a variable frequency brake motor, a main shaft, a rotary connecting rod, and a cylinder. The loaded cylinder is driven by the driving shaft to perform Parallel transport, rock and roll and other composite movements, which promote the material to perform circumferential, radial and axial three-way composite movements along the cylinder, thus realizing the mutual flow, diffusion and doping of various materials, so as to achieve the goal of highly uniform mixing. By utilizing unique three-dimensional swing, translational transport, and rock principles, a strong alternating pulse motion is generated, continuously pushing the mixture of materials. The vortex generated has a varying energy gradient, which can produce excellent mixing effects. It has the advantages of smooth operation, low noise, high loading coefficient, and short mixing time.

Product application and characteristics

This machine is widely used for mixing dry powder materials in industries such as pharmaceuticals, chemicals, and food. It can also quickly and evenly mix several materials with different specific gravity and particle sizes. With a unique driven shaft servo structure, the entire machine runs smoothly, reliably, and with low noise.

The equipment does not require a foundation, is easy to install and maintain, and has a long service life.

Good mixing effect, short mixing time, and a mixing uniformity of over 99.5%.

The height of the turning space is low.

The eccentric design of the discharge cone of the mixed barrel body ensures no dead corners during discharge and is easy to clean.

Specification parameters

1. The effective loading rate of the container reaches 80%, with short mixing time and high efficiency (only 40% for ordinary mixers);

2. The machine has a low height and no special requirements for the factory building, reducing infrastructure investment;

3. The mixing bucket and the transmission part of the machine body can be installed as partition walls, making it easy to meet GMP requirements;

4. Various shapes of mixing containers can be placed in the mixing cylinder for mixing, making it convenient to use;

5. Can achieve stepless speed regulation, easy to load and unload;

6. Long lifespan, low noise;

7. Can achieve vacuum feeding or lifting machine feeding for users.

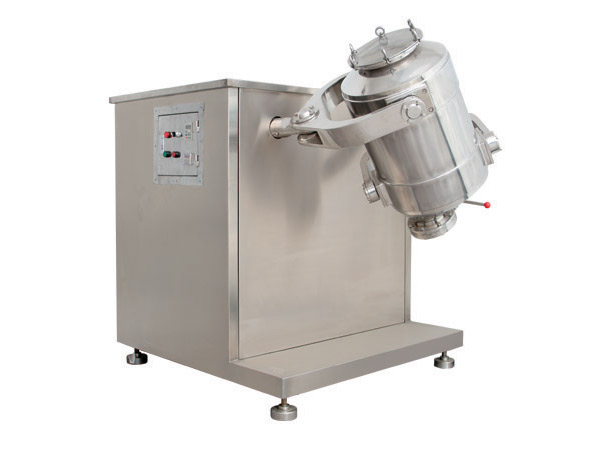

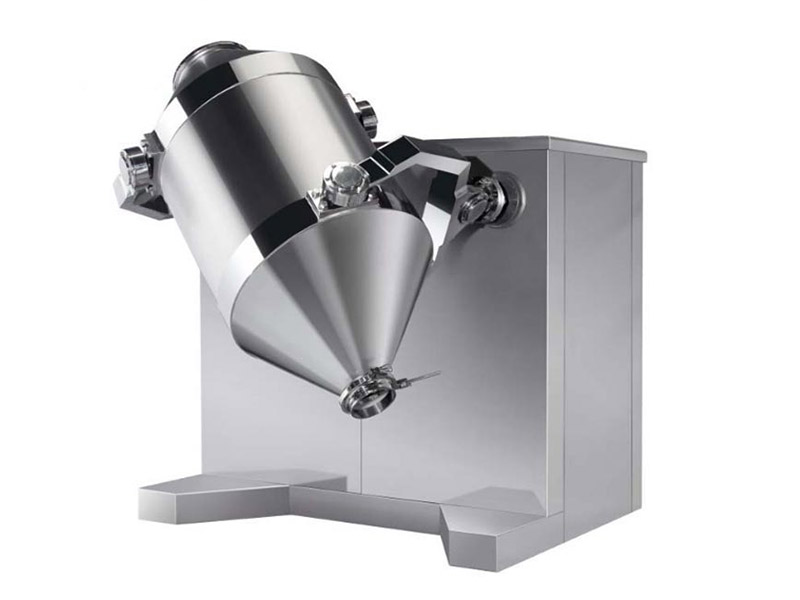

case diagram
